GROVE GMK6300L-1

The Grove GMK6300L-1 mobile crane continues adding to the new generation of Grove cranes by improving load charts by 7% in respect of its predecessors (the GMK6300 in particular.) Boom length is now 80 metres on a 6-axle carrier, configurable to 12x6x12 or 12x8x12. The maximum lifting capacity of the GMk6300L-1 is 300 ton at 2,5 metres radius, and the telescopic boom can be fully extended in about 760 seconds. Grove’s Megatrak suspension and standard all wheel steering completes the package.

GENERAL CHARACTERISTICS
Manufacturer.	Manitowoc Crane Group
Crane Model.	GMK 6300L-1
Max. Lifting capacity.	300 ton @ 2,5 metres
Outrigger base.	8700 x 8500 mm
Max. Turning radius.	14900 mm
Axles.	6

THE CRANE’S CARRIER
Chassis width.	3000 mm
Carrier engine.	MB OM 473 LA – 430 kW (585 PS)
Fuel Tank.	480 litres
Emissions regulation.	EPA/CARB
Transmission.	Allison 4500 SP
Drive & Steering.	12x6x12 or 12x8x12
Type of suspension.	Megatrak
Tyre sizes.	14.00 R25 | 16.00 R25 | 20.5 R25
Gradeability	53,6%
Driving speed	85 Km/h

SUPERSTRUCTURE
Telescopic boom.	15,6 – 60,0 metres in ~760 sec.
Boom sections.	7 sections
Max. luffing angle.	83° in ~95 sec.
Folding jib.	12,0 – 21,0 metres (offset 5°/20°/40°)
Hoists.	1 or 2
Counterweight.	92,5 ton
Safety computer.	Grove system
Superstructure engine.	MB OM 936 LA – 210 kW (286 PS)
Emissions regulation.	EPA/CARB
Fuel tank.	220 litres

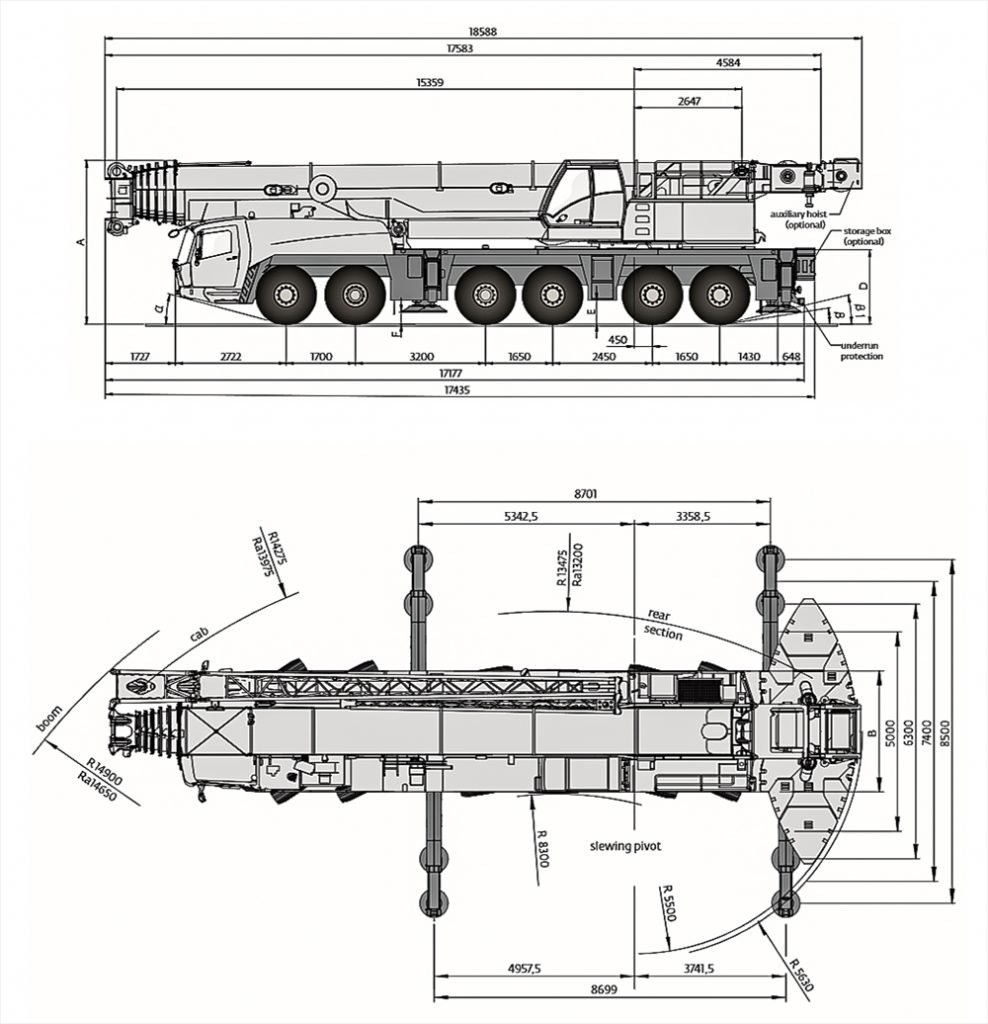

DIMENSIONS
Length.	17583 mm
Width.	3000 mm
Height.	4000 mm
Weight.	72000 Kg

Source : Grove GMK 6300L-1 mobile crane brochure June/2021
